Author Topic: Another 6/1 Restoration  (Read 69502 times)

Dieselsmoker

  • If your genset fails, remeber Ps 119:105 - Your word is a lamp for my feet, a light on my path.
  • Full Member
  • ***
  • Posts: 141
  • Self-Certified Professional Engine Lover
    • View Profile
    • Get your spares back!
Re: Another 6/1 Restoration
« Reply #210 on: October 29, 2017, 07:18:34 PM »




Things don't always work out as planned it seems...

First setback was the overload breaker. I got a "normal" 10A breaker of the shelve and installed it along with a neutral bar to tidy the wiring up a bit. To test the breaker I fired up the engine and lined up some appliances to load the alternator with while giving the old girl some time to build up a bit of heat. Great anticipation sometimes leads to great dissapointment. The breaker reacts too slowley. As soon as the engine speed drops, the voltage drops and the current - well yes you get the picture. There is now way I can get the breaker to trip. Any ideas? I'm not sure if there are differently specced breakers available or if a smaller one will do the trick?

Second problem was the Arduino. I build some circuits on the breadboard and decided to o follow the route of full-wave rectification. If you look at the picture - on the left-hand side I took the 12V tap from the transformer and put it through a bridge rectifier and a voltage regulator with some caps to smooth things out to serve as a 5V supply to power the Arduino.

In the middle is a 5V relay that will eventually be used to operate the contactor.

On thr right-hand side the 6V tap on the transformer is rectified for measurement by the Arduino. The 50K pot is to calibrate the circuit so that the 5VDC that feeds into an analogue input can be calibrated to measure 250V @ 1024 bits. There is also a polarised cap and a 5V Zener in the mix before the signal gets fed into the Arduino. Simple. So it works, but the serial monitor sometimes reports some erratic results - not sure why yet, and I couldn't figure it out since the Arduino stopped accepting sketches getting uploaded  :'(  It looks serious... I think it's dead...

Bruce - your PM is on it's way. I'd like to have a look at what you have. It's gonna take a while to replace the Arduino.
1963 Lister 6/1 genset - Restored
1942 Fairbanks-Morse ZC-208 - Restored
1945 Ruston & Hornsby PB 3HP - To be restored
1954 John Deere 40-S - Current project

BruceM

  • Hero Member
  • *****
  • Posts: 2538
    • View Profile
Re: Another 6/1 Restoration
« Reply #211 on: October 29, 2017, 10:27:56 PM »
Hi Dieselsmoker.  Pity about the Arduino.  Some protection from ac line spikes might be in order, or it could have been a neutral/ground loop issue if you programming computer was plugged in and the generator was on.  If you want to send me a schematic I may be able to spot the likely problems.  It's clear you have some skills if you put this together so quickly- bravo!

 I've sent you my prototype AVR schematic which has adjustable time delayed, high/low analog voltage level sensing...filtered peak, not RMS.  It has served my 6/1-ST3 setup well for over 10 years.  Sometimes analog is just easier.  I set the trigger points while it was on the bench just as you did-  loading the harmonic regulated ST head until voltage sags, or conversely, lighten the load to get a bit of over voltage.  The I increased the time delays to allow for motor starts, or load shedding; allowable short over/under voltage situations.






Dieselsmoker

  • If your genset fails, remeber Ps 119:105 - Your word is a lamp for my feet, a light on my path.
  • Full Member
  • ***
  • Posts: 141
  • Self-Certified Professional Engine Lover
    • View Profile
    • Get your spares back!
Re: Another 6/1 Restoration
« Reply #212 on: November 15, 2017, 07:58:14 PM »
I've made some good progress with the voltage regulating circuitry. Thanks BruceM for all the help and advice thus far. I however must interrupt this topic to report back on the transfers that finally arrived. It was a looong 15 week wait... but well worth it.







1963 Lister 6/1 genset - Restored
1942 Fairbanks-Morse ZC-208 - Restored
1945 Ruston & Hornsby PB 3HP - To be restored
1954 John Deere 40-S - Current project

Dieselsmoker

  • If your genset fails, remeber Ps 119:105 - Your word is a lamp for my feet, a light on my path.
  • Full Member
  • ***
  • Posts: 141
  • Self-Certified Professional Engine Lover
    • View Profile
    • Get your spares back!
Re: Another 6/1 Restoration
« Reply #213 on: January 06, 2018, 08:30:44 PM »
This update is waaaaay overdue. Been on holiday and without any photographic material I dared not post anything!  :)

Milestone met! The genset is good enough to show off and it works 100%.
There are only a few more boxes to tick to get to exactly where I want to be - for now I am however content with where I am with the project.

It's been an interesting journey to get the electrics sorted... With the Arduino fried the next option was to go analogue. Thanks again to BruceM for the advice and encouragement.

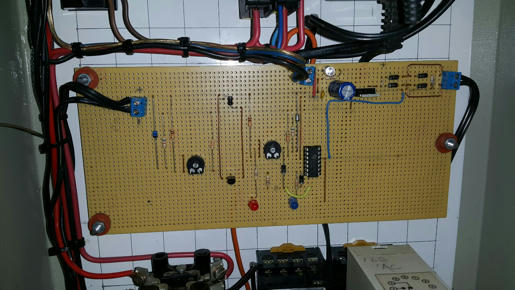

Circuit operation in a nutshell: Voltage coming from the alternator is scaled down to 12V and monitored by op-amp comparitors. As soon as either adjustable over- or under voltage thresholds are exceeded, the circuit energises a power relay to shed the load going to the plug outlet. There is a time dealy build in to filter out dips and spikes. When the fault condition is resolved, the circuit can be reset to connect the load again. There is a switch in the panel where the monitoring circuit can be switched off - with the power relay wired N/C the circuit can thus operate without intervention. The green LED on the panel door indicates that voltage monitoring is active.

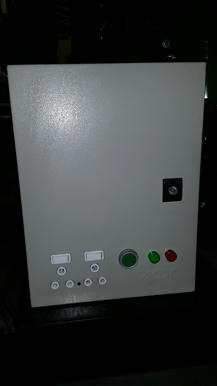

From left to right:
Plug outlet.
Non-latching pushbutton to reset trip.
Green LED - Voltage monitoring active.
Red LED - Output tripped.

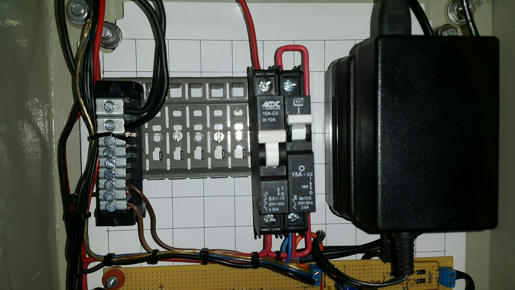

Complete circuit assembly:


From left to right:
Neutral bar.
Main circuit breaker.
Voltage monitoring circuit breaker (On/Off).
2x transformers:
     One is to scale 230V to 12V for input into the comparitors.
     The other is 230V to 18V to power the delay-on relay.

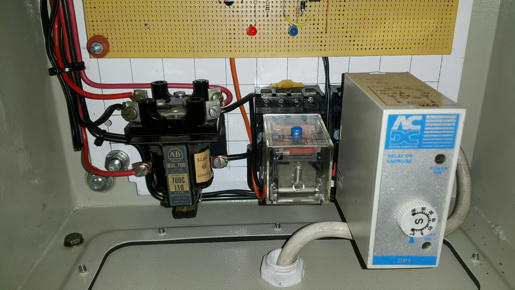

The brains of the circuit:


From left to right:
Power relay to disconnect load. (230V Coil).
12V relay controlled by the delay timer. These contacts operates the power relay.
Delay-on timer triggered by the voltage monitoring circuit.


A brief demonstration:
https://youtu.be/vpnZOMdcmFM

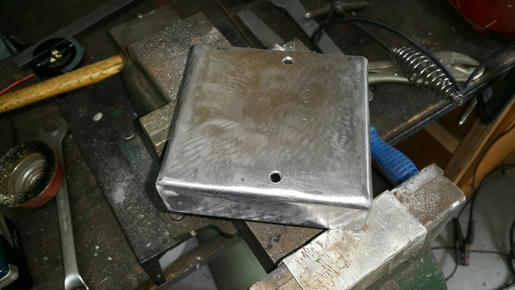

For the alternator connection box I also made a cover. Found some plate in the shed and some heavy hammerblows later I had the cover.




On the way back from our coastal holiday, we made a road trip of the 1300Km journey back home. We stopped at a couple of interesting places and avoided the main roads so we could pass through some small towns. In one of these towns called "Willowmore" we browsed through some antique shops. In one of these shops I found a Lister Diesel tank, exactly the same as the one I have, in the back of a dark shelve  ;D The tank is beyond repair, but the Lister cap is intact! Of course it had to come home with me. In no time I had it cleaned up and the piece of crap chinese-made cap  was chucked sidways!



My to-do list to round the project off:
Guages in the panel door. (Volts, Amps, Hour meter, Frequincy)
Probably paint the panel green.
Gib head key covers.
Rocker bushes. (I'll turn these myself)
TAKE IT TO A SHOW!
1963 Lister 6/1 genset - Restored
1942 Fairbanks-Morse ZC-208 - Restored
1945 Ruston & Hornsby PB 3HP - To be restored
1954 John Deere 40-S - Current project

BruceM

  • Hero Member
  • *****
  • Posts: 2538
    • View Profile
Re: Another 6/1 Restoration
« Reply #214 on: January 07, 2018, 01:52:58 AM »
Very nice work on the voltage monitor with time delay and latching relay control of the main power relay!  Your video shows real talent for concise and clear technical explanation...not easy to do.

The whole setup is a restoration work of art and should make some heads turn at the engine shows but would also make a fine home power source as well.  Bravo Dieselsmoker!










Hugh Conway

  • Sr. Member
  • ****
  • Posts: 379
    • View Profile
Re: Another 6/1 Restoration
« Reply #215 on: January 07, 2018, 06:34:20 PM »
Very nice work Dsmoker! And Bruce, I admire your knowledge of electronics.....All that is a completely foreign language for me.
Here, we are at the other end of the scale with a daily driver listeroid. after all these hours, it is a bit blackened  from the carbon in the oil that inevitably oozes out. A good weekly wipe down helps, but cannot really restore it to the original (none too great )finish.
The only electrics are analogue volt  and ammeters and a vibrating reed freq meter.
I''ve been very fortunate to have sorted out my governor to hold the freq.  to within 1 Hz from no load to full load.
I am at about 60 meters above MSL and can pull a continuous 3600W@ 240V without anything complaining, though normally ask it for about 2900W when charging batteries. We once pushed it to output a measured 4000+ watts, but it was asking a lot.  That great Utterpower PMG was worth every penny!
We've logged just over 1500 hours now and the machine sits in a corner of a 3 sided carport exposed to the cold and damp of the coastal islands. As they say, "it ain't pretty, but it does work" Clean fuel and regular oil changes seem to be all it wants. A Solberg air filter/sound suppressor screws right into the standard intake adapter and  really quiets the intake noise.
I do have a Dursley 6/1 that was intended to be more of a show machine, but in the end it will also have a regular job.
It is quite a diverse group and large skill set here on this forum. I visit nearly every day to learn from you all.
Cheers,
Hugh
JKson 6/1  (Utterpower PMG ) Off-grid
Lister 6/1 Start-O-Matic engine......running with PMG
1978 Royal Enfield (glutton for punishment by Indian iron)
1963 BMW R-27 project

BruceM

  • Hero Member
  • *****
  • Posts: 2538
    • View Profile
Re: Another 6/1 Restoration
« Reply #216 on: January 07, 2018, 07:04:08 PM »
Thanks, Hugh, I have learned much here as well.  George B's management of the development and production of the PMG heads was very impressive and a huge undertaking.  I was an R&D manager and can really appreciate the task.

Regarding intake noise, I think 38AC's work has convinced me that this is likely an intake cam timing issue,  since some have it an others (like my older Metro and neighbor's DES 8/1 propane conversion) do not.  I wonder if you could also make it go away by increasing intake lash to retard intake open timing?  It's certainly an easy experiment.



Dieselsmoker

  • If your genset fails, remeber Ps 119:105 - Your word is a lamp for my feet, a light on my path.
  • Full Member
  • ***
  • Posts: 141
  • Self-Certified Professional Engine Lover
    • View Profile
    • Get your spares back!
Re: Another 6/1 Restoration
« Reply #217 on: May 21, 2018, 08:18:09 PM »
Hi Listerines!
I took the Lister to its first show a couple of weeks ago. Pity I only learned about it the day before so I was not prepared at all. It was just load and go! It was close to where I live from so I pulled the trailer with the Lister on to the show with the John Deere. There is a bigger show coming up in September I'll prepare better for. I'll think of something nice for it to do and also make a nice sign for it with some specs and pictures maybe.

It was a car-show organized for a church charity that was held at the local Primary School. I stole a lot of limelight with the only stationary engine and tractor there  :D The Lister drew a lot of attention - especially with the older generation that grew up with these around on the farms.



The John Deere 40 was a hit with kids. They climbed on one after the other to pose for pictures on it.  8)


My son demonstrating the PTO pulley:


On Sunday we FINALLY had a power cut for two hours and I could drag out the Lister to do some REAL work.
https://youtu.be/2o6lEUi1cbY


I have a question about the exhaust of the Lister. If it's nicely warmed up and under load - how clean should the exhaust be? It always smokes a bit - never totally clean. It definitely gets better when nicely warmed up so this is not entirely as bad as it is when worked for 2 or more hours. Check this short video: https://youtu.be/zWEAvepyJRM?list=UUhqCC4-8MJq7uqgqdUSmlzg

I upped the injector opening pressure somewhat:


The spray is not perfectly atomized... hoe does this look? (It took a couple of tries with the cellphone camera to catch the image)
1963 Lister 6/1 genset - Restored
1942 Fairbanks-Morse ZC-208 - Restored
1945 Ruston & Hornsby PB 3HP - To be restored
1954 John Deere 40-S - Current project

BruceM

  • Hero Member
  • *****
  • Posts: 2538
    • View Profile
Re: Another 6/1 Restoration
« Reply #218 on: May 21, 2018, 08:45:29 PM »
Bravo on your show debut. Your restoration is most impressive.

I don't recall your engine's break in status, but it often takes 100+ hours under load for a CS to fully seat the rings.  My exhaust looked even better after 200 hrs. The exhaust should be nearly clear when warmed up under moderate load.

It's hard to judge your spray pattern from a photo so close to the nozzle but it might be too spray/jet like and not like a "burst of fog".  (May not be atomizing well.) I'd swap in a new nozzle or injector and see if that helps.  Check it visually first so you can see what a good one looks like.  Your injector may be fine; I can tell more from the sound and mist from it hitting in a coffee can since that's what I use with my DIY grease gun pop tester.  A jet is not ideal. A bit of carbon in the nozzle can cause a jet, as can poor pintle fit, in my limited experience.




glort

  • Hero Member
  • *****
  • Posts: 2733
    • View Profile
Re: Another 6/1 Restoration
« Reply #219 on: May 21, 2018, 11:01:11 PM »

You have done a brilliant job on your machine!
It looks awesome and runs beautifully smooth as well.

The injector on my machine fires in a circle pattern. The fuel comes out from every side, not firing like yours appears to be to one side. I agree with Bruce, I can tell more about how they are firing from the sound, at least on my china diesel which I have had more hands on time with.  Had to pull that apart a few times due to not running it for over a year and the veg fuel gumming it up. No big deal to clean it but as soon as I wind it up I can tell by the sound if it's right or not.

Given the time and incredible effort you have put into the thing, a few more bucks on a new injector may be worth while if you can't clean this one.
The ones on my china diesels come apart easily and there isn't much to them but they are easy to clean out stuff you can't see but just won't clean themselves with any sort of solvent when running.

Unscrewing the muffler may give you an indication as to how the engine is running. If it's wet in the exhaust port at all something's not quite right.
May not be bedded in with the rings or it may be the injector but I would eliminate the easiest possibility first and then give it some time and see how you go.

Would be best at this stage to always run with a load on the thing. If you have electric hot water heating you could always hook it up to that to give it a load to work from and get some benefit out of it.

Dieselsmoker

  • If your genset fails, remeber Ps 119:105 - Your word is a lamp for my feet, a light on my path.
  • Full Member
  • ***
  • Posts: 141
  • Self-Certified Professional Engine Lover
    • View Profile
    • Get your spares back!
Re: Another 6/1 Restoration
« Reply #220 on: May 22, 2018, 10:03:50 AM »
Bravo on your show debut. Your restoration is most impressive.

I don't recall your engine's break in status, but it often takes 100+ hours under load for a CS to fully seat the rings.  My exhaust looked even better after 200 hrs. The exhaust should be nearly clear when warmed up under moderate load.

It's hard to judge your spray pattern from a photo so close to the nozzle but it might be too spray/jet like and not like a "burst of fog".  (May not be atomizing well.) I'd swap in a new nozzle or injector and see if that helps.  Check it visually first so you can see what a good one looks like.  Your injector may be fine; I can tell more from the sound and mist from it hitting in a coffee can since that's what I use with my DIY grease gun pop tester.  A jet is not ideal. A bit of carbon in the nozzle can cause a jet, as can poor pintle fit, in my limited experience.

Thankyou!
I have no idea how many hours are on the engine... I have that hour meter on my wishlist  ::)

It is possible that the engine is not fully run in, but I am not totally happy with the spray pattern... I have a Mercedes 300D nozzle I'll try as reference (if it fits in the injector holder) - never thought of doing that while I had everything set up!

What is the best way to determine the optimum opening pressure? Surely things like atmospheric pressure will have an influence? Or is it not too critical as long as it is near the 90 atm mark the manual recommends? I just checked something: 90 atm = 93 Kgf/sq cm so my setting is pretty accurate. I did play with the adjustment screw while the engine was running and a full turn either way had very little noticible effect on smoke or power output. (I'm not sure how much one turn affects opening pressure - I'll check when I take the injector out again)

The injector is as clean as I could get it - but I won't be surprised if the hole is not perfect as the injector tip is pitted by corrosion. I'll take it to a Diesel service centre who has the tools to clean this out properly.
1963 Lister 6/1 genset - Restored
1942 Fairbanks-Morse ZC-208 - Restored
1945 Ruston & Hornsby PB 3HP - To be restored
1954 John Deere 40-S - Current project

Dieselsmoker

  • If your genset fails, remeber Ps 119:105 - Your word is a lamp for my feet, a light on my path.
  • Full Member
  • ***
  • Posts: 141
  • Self-Certified Professional Engine Lover
    • View Profile
    • Get your spares back!
Re: Another 6/1 Restoration
« Reply #221 on: May 22, 2018, 10:21:28 AM »

You have done a brilliant job on your machine!
It looks awesome and runs beautifully smooth as well.

The injector on my machine fires in a circle pattern. The fuel comes out from every side, not firing like yours appears to be to one side. I agree with Bruce, I can tell more about how they are firing from the sound, at least on my china diesel which I have had more hands on time with.  Had to pull that apart a few times due to not running it for over a year and the veg fuel gumming it up. No big deal to clean it but as soon as I wind it up I can tell by the sound if it's right or not.

Given the time and incredible effort you have put into the thing, a few more bucks on a new injector may be worth while if you can't clean this one.
The ones on my china diesels come apart easily and there isn't much to them but they are easy to clean out stuff you can't see but just won't clean themselves with any sort of solvent when running.

Unscrewing the muffler may give you an indication as to how the engine is running. If it's wet in the exhaust port at all something's not quite right.
May not be bedded in with the rings or it may be the injector but I would eliminate the easiest possibility first and then give it some time and see how you go.

Would be best at this stage to always run with a load on the thing. If you have electric hot water heating you could always hook it up to that to give it a load to work from and get some benefit out of it.

Thanks Glort. The encouragement and advice gained from this forum helped a lot to get the job done!

The injector should spray to the side for the stream to align with the hole in the head. Other types of injectors do have a conical spray pattern where the tip is exposed directly to the combustion chamber. On page 12 of this thread there are some books that explains this - but you probably know this already. Are you using the conical spray tip in the Lister? If yes it will make finding a replacement tip so much easier!

I'll take the muffler off and check the port. The muffler definately catches some unburnt fuel or oil when the engine ran for a while with no load. When connecting a load there is clearly a lot more smoke for a few minutes before it improves. Usually when I let it run I connect it to the house so, like you said, it does something productive and not just burn the fuel for nothing.
1963 Lister 6/1 genset - Restored
1942 Fairbanks-Morse ZC-208 - Restored
1945 Ruston & Hornsby PB 3HP - To be restored
1954 John Deere 40-S - Current project

BruceM

  • Hero Member
  • *****
  • Posts: 2538
    • View Profile
Re: Another 6/1 Restoration
« Reply #222 on: May 22, 2018, 05:24:08 PM »
Pop pressure is not going to matter much in our slow speed engines.  Within 10% of spec would be fine on a single cylinder engine.  I'd match pop pressures for a twin.

Your smoke n the video seems to look a bit blueish- so I'd bet on ring seating or excess splash oil.

I'm also a  MB 300D owner/driver.  Matching pop pressure/pattern for it is quite helpful to engine smoothness.  A DIY grease gun pop tester worked well for me.


glort

  • Hero Member
  • *****
  • Posts: 2733
    • View Profile
Re: Another 6/1 Restoration
« Reply #223 on: May 23, 2018, 12:35:42 AM »

I'm also a  MB 300D owner/driver.  Matching pop pressure/pattern for it is quite helpful to engine smoothness.

Is yours a turbo Bruce?  They never brought them out here so mine being NA was woefully slow, even to the point of being dangerous I felt.  I dialed the fuel up much as it would take without being a mobile smoke screen and that helped but was still pretty dismal. Water injection helped and when I was running methanol in it, the thing really woke up..... in a tortoise scale of speed.

Having injectors right is critical.  I changed the injectors on my present Turblow Diesel and the difference was amazing. I was told the injectors in it were only 3 Yo when I got it but they were either older and sadder or not done right.
The new injectors were so good I turned the turbo boost from 16 Lb to 8 and reduced the fuel significantly and the thing was still a touch faster and gruntier than before. Learned a lot about injectors right there.

Funny enough though, I can't say I noticed any significant change in fuel usage.... Not that I really cared or had a consistent Driving pattern.

BruceM

  • Hero Member
  • *****
  • Posts: 2538
    • View Profile
Re: Another 6/1 Restoration
« Reply #224 on: May 23, 2018, 12:59:48 AM »
Yes, my 1985 300D has a turbo charger. Shorter engine life than the NA model (average is about 350K) but at my elevation of 5600 feet it's essential. I pull a couple utility trailers and for years pulled a small sailboat (West Wight Potter) with it with no trouble at all.
